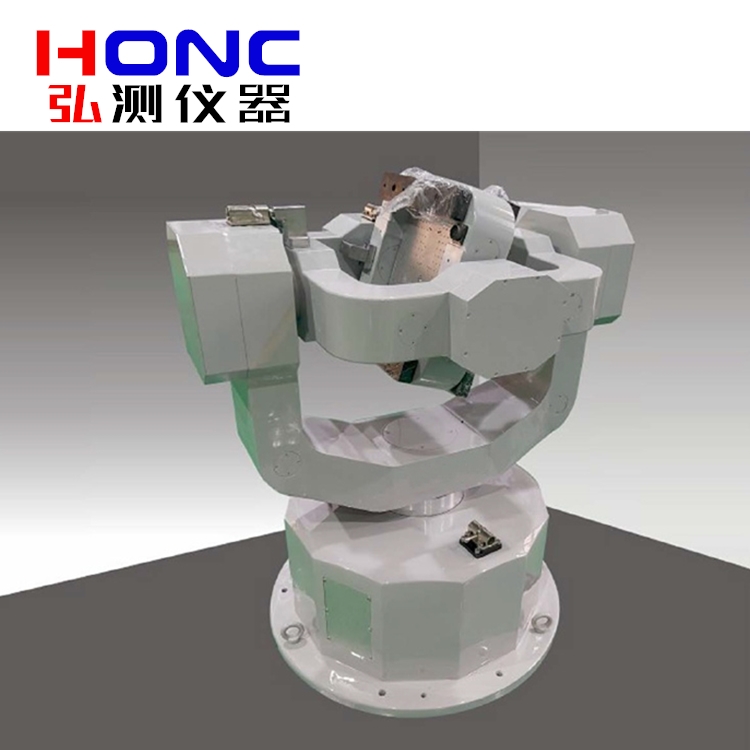

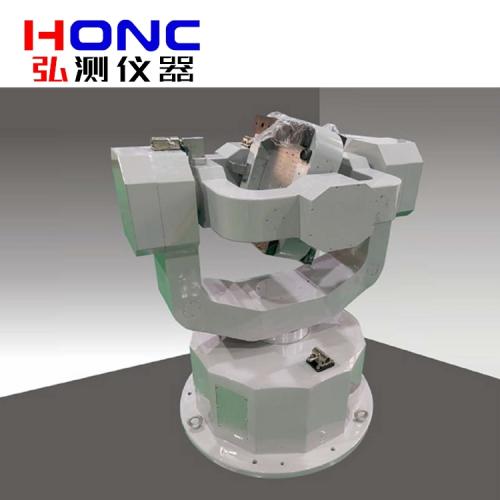

3FDT-400C型 三軸電動轉臺【慣性導航測試轉臺】
3FDT-400C型 三軸電動轉臺【慣性導航測試轉臺】
產品簡介 Product introduction

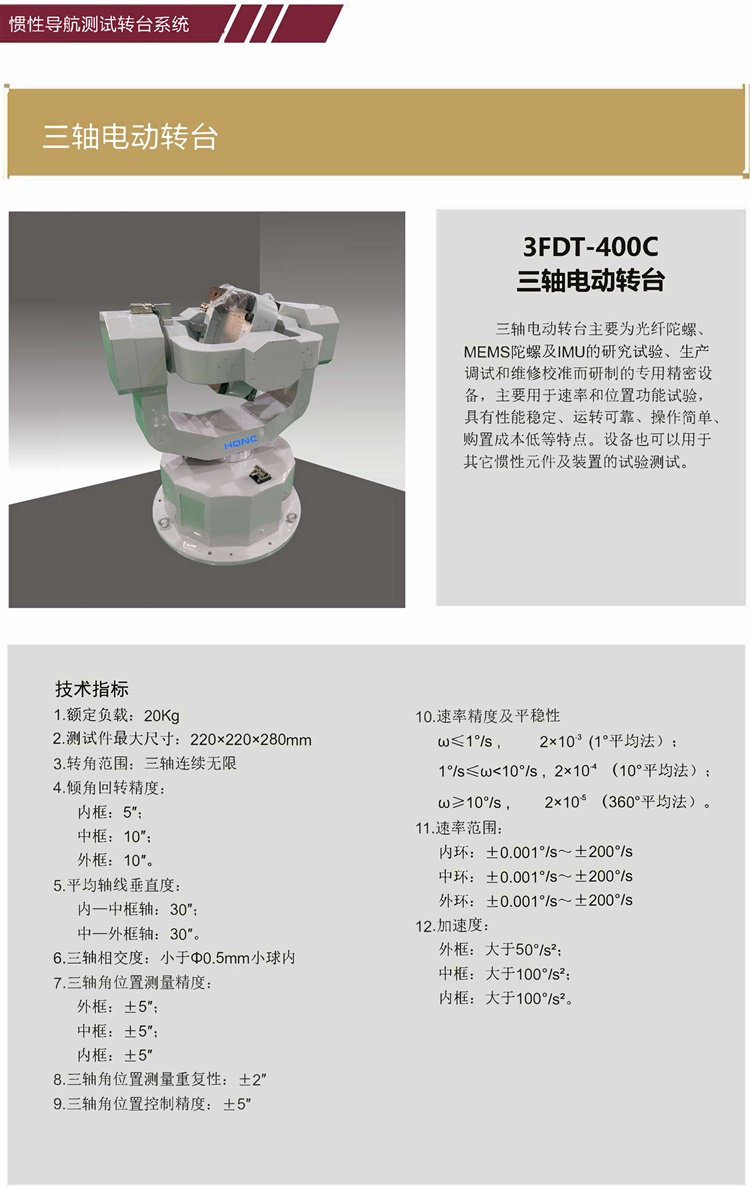

技術指標 Technical indicators
1. 額定負載:20Kg;
2. 測試件最大尺寸:220×220×280;
3. 轉角范圍:三軸連續無限;
4. 傾角回轉精度:內框:±5″;中框: ±10″;外框:±10″。
5. 平均軸線垂直度: 內—中框軸:±30″;中—外框軸:±30″。
6. 三軸相交度:小于Φ0.5mm小球內;
7. 三軸角位置測量精度:外框:±5″;中框:±5″;內框:±5″;
8. 三軸角位置測量重復性:±2″;
9. 三軸角位置控制精度:±5″;
10. 速率精度及平穩性
ω≤1°/s,2×10-3 (1°平均法);
1°/s≤ω<10°/s,2×10-4 (10°平均法);
ω≥10°/s,2×10-5 (360°平均法)。
11. 速率范圍:
內環:±0.001°/s~±200°/s;
中環:±0.001°/s~±200°/s;
外環:±0.001°/s~±200°/s;
12. 加速度:
外框:大于50°/s2;
中框:大于100°/s2;
內框:大于100°/s2;
