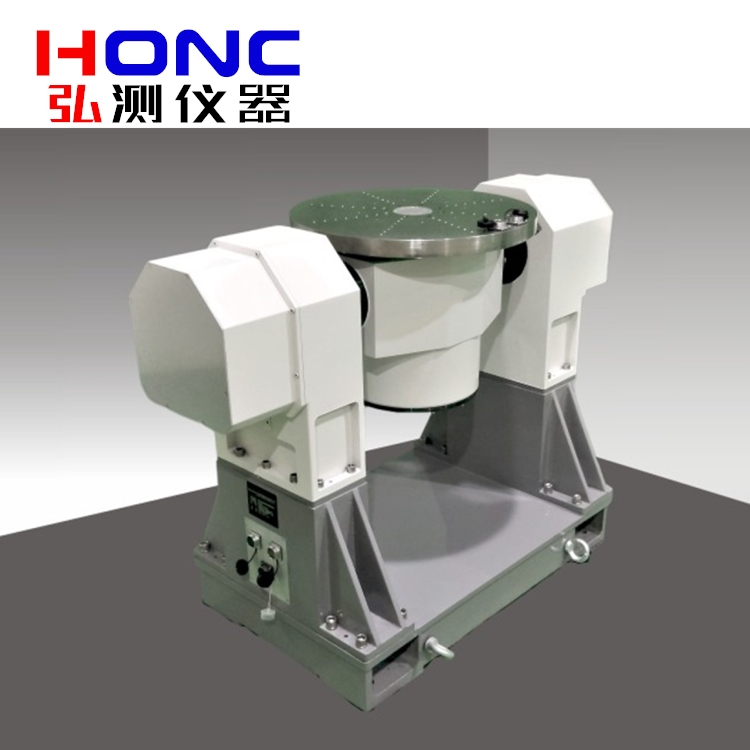

2FDT-450A型 雙軸電動轉臺【慣性導航測試轉臺】
2FDT-450A型 雙軸電動轉臺【慣性導航測試轉臺】
產品簡介 Product introduction

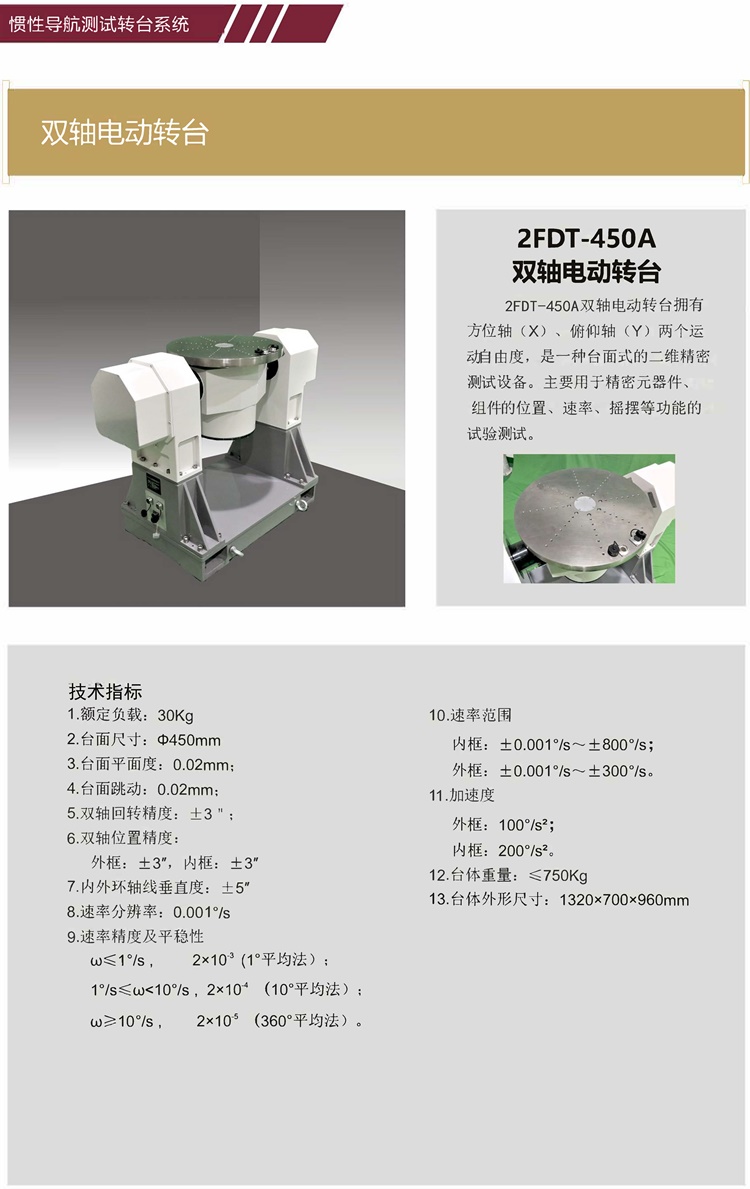

技術指標 Technical indicators
1.額定負載:30Kg;
2.臺面尺寸:Ф450mm;
3.臺面平面度:0.02mm;
4.臺面跳動:0.02mm;
5.雙軸回轉精度:±3";
6.雙軸位置精度:外框:±3″,內框:±3″;
7.內外環軸線垂直度:±5″;
8.速率分辨率:優于0.001°/s;
9.速率精度及平穩性
ω≤1°/s,2×10-3 (1°平均法);
1°/s≤ω<10°/s,2×10-4 (10°平均法);
ω≥10°/s,2×10-5 (360°平均法)。
10.速率范圍
內框:±0.001°/s~±800°/s;
外框:±0.001°/s~±300°/s。
11.加速度
外框:大于100°/s2;
內框:大于200°/s2。
12.臺體重量:≤750Kg;
1. 臺體外形尺寸:1320×700×960mm;
