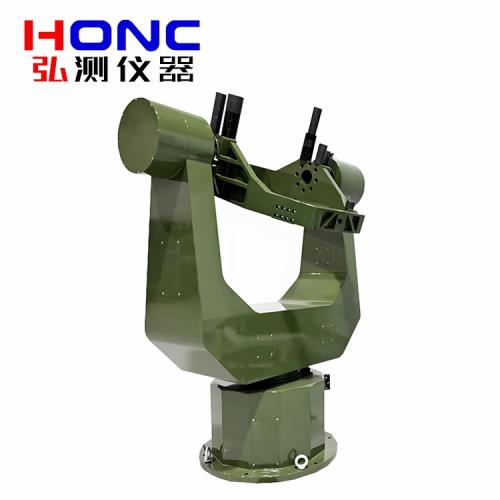

2STGZ-150型 U型重載荷二維跟蹤轉臺【衛星跟蹤轉臺系統】
2STGZ-150型 U型重載荷二維跟蹤轉臺【衛星跟蹤轉臺系統】
產品簡介 Product introduction
技術指標 Technical indicators
1,負載重量:150Kg;
2,轉角范圍:方位±280°;俯仰±90°;
3,軸線回轉精度:±3″;
4,角位置定位精度:±3″;
5,角位置分辨率:±2″;
6,角位置分辨率:0.0001°;
7,保精跟蹤速度:10/s≥方位1″/s;5°/s≥俯仰1″/s;
8,碼盤分辨率:1″;
9,零點:具有碼盤零點;
10,對恒星目標:10秒種內誤差<0.5″;
11,開環跟蹤精度:60分鐘內誤差<1″ ;
12,對空間目標:?jiǎn)屋S<5″;
